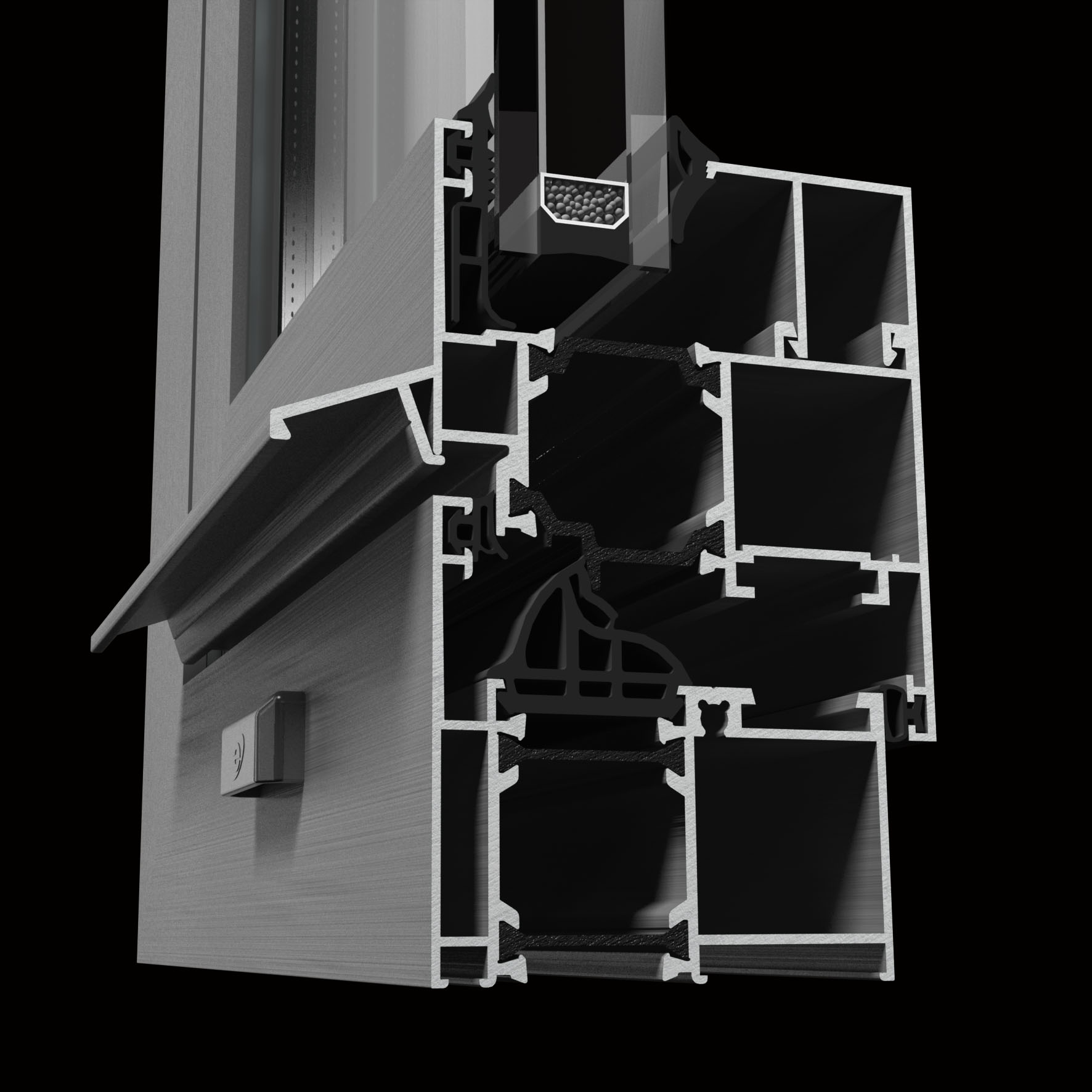

E45 IS AN ENERGY CONSERVATION SYSTEM FOR OPENING WINDOWS AND DOORS.
Оptimized for highest structural stability while using lowest amount of aluminium
Profile re-inforcement at load bearing points
Elegant straight or curved line; 60 mm system width in case of straight line type and 67.5 mm width in curved type
Opening parts – opening at vertical axis, tilt and turn, opening at top or bottom horizontal axes, folding doors, parallel sliding
Reliable pivot mechanism
Window sashes for PVC hardware which enables multiple locks, hinges adjustment and fast mounting
New elegant series with concealed sash
Mechanism for smoke proof doors according to safety regulations
Double glazing from 18 up to 49 mm
| Denumire | Valoare |
|---|---|
| Frame width: | 60 mm |
| Min. frame height: | 45 mm |
| Min. casement height (f+v): | 71 |
